TPI 709R Flue Gas Analyser Kit 5
TPI 709R Combustion Efficiency Analyser - Kit 5 Details

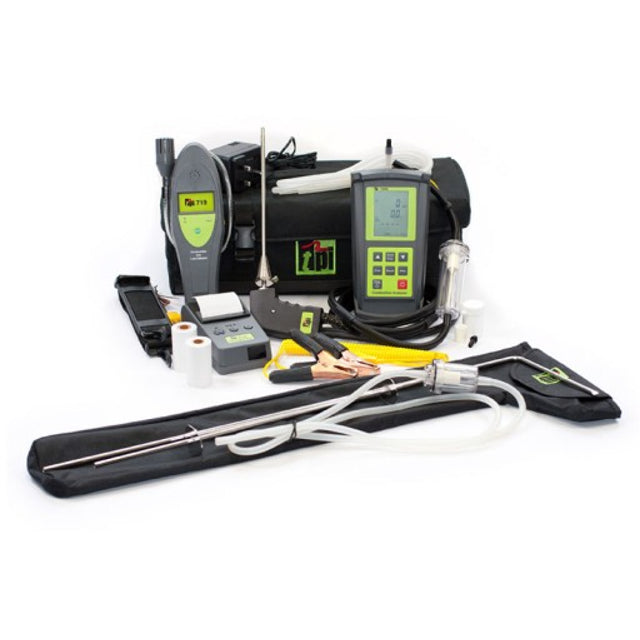

TPI's best overall 709R kit, this bundle pack comes with a 709R analyser, all standard accessories and an infrared printer, 2 x pipe clamp temperature probes, CPA1 cooker probe kit and TPI 719 gas sniffer!
A must-have for professional boiler installers, the 709R can be used to commission, install and maintain boilers powered by multiple fuel types (10 in total). It can measure a wide variety of different parameters, including excess air, CO/CO2 ratio, perform let-by/tightness testing and even has a built-in differential manometer for pressure testing.
The analyser also comes with built-in memory (up to 99 records) and can also send information over infrared to the included printer for quick and easy printing of testing records.
TPI 709R Combustion Efficiency Analyser Key Features
TPI's best overall 709R kit, this bundle pack comes with a 709R analyser, all standard accessories and an infrared printer, 2 x pipe clamp temperature probes, CPA1 cooker probe kit and TPI 719 gas sniffer!
A must-have for professional boiler installers, the 709R can be used to commission, install and maintain boilers powered by multiple fuel types (10 in total). It can measure a wide variety of different parameters, including excess air, CO/CO2 ratio, perform let-by/tightness testing and even has a built-in differential manometer for pressure testing.
The analyser also comes with built-in memory (up to 99 records) and can also send information over infrared to the included printer for quick and easy printing of testing records.
TPI 709R Combustion Efficiency Analyser Key Features
- Fully rechargeable batteries
- Built-in differential manometer with 0.001" H20 resolution
- High accuracy calculations of combustion efficiency
- Pump-driven sensor ensures fast response
- Ten selectable fuelds: natural gas, LPG, light oil, heavy oil, bitunimous coal, anthracite coal, coke, butane, wood and bagasse
- Built-in differential thermometer
- Memory - can store up to 50 readings
- Large-size, easy-to-read backlit display
- Filtering of nitric oxide, nitrogen dioxide and NOX to prevent cross sensitivity errors
- Measure CO, O2 and stack temperature
- PC communication
- Combustible gas detection
- TPI 709R Combustion Efficiency Analyser
- Rubber Boot
- Battery Charger
- Soft Carrying Case
- Flue Sampling Probe
- In-Line Filter Assembly on Flue Probe
- Temperature Probe
- Mini Pump Protection Filter Assembly and Spare Filters
- Exhaust Spigot (Removable)
- Instruction Manual
- Infrared Printer
- 2 x Temperature Pipe Clamp Probes
- CPA1 Cooker Probe Kit
- TPI 719 Gas Sniffer (Gas Detector)
