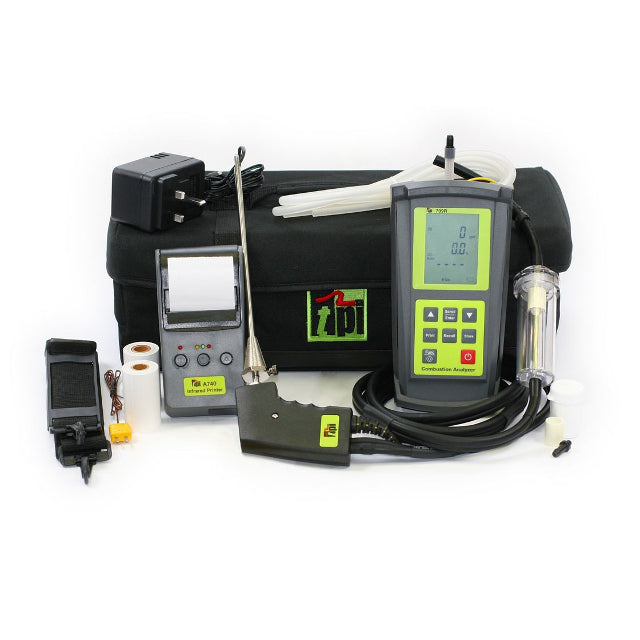

TPI 709R Flue Gas Analyser Kit 2
TPI 709R Combustion Efficiency Analyser - Kit 2
Kit 2 of the 709R comes with everything in kit 1 (all standard accessories + an infrared printer) and also includes a set of 2 CK12M Pipe Clamp temperature probes.
The 709R is a handheld, portable and easy-to-use combustion analyser with built-in memory (99 records) and PC communication. Low cost and with several advanced features, this analyser is perfectly suited for any professional gas engineer.
The analyser can be used to measure flue gas and combustion equipment powered by 10 different fuels: natural gas, LPG, light oil, heavy oil, bituminous coal, anthracite coal, coke, butane, wood and bagasse.
It can measure everything needed to ensure combustion efficiency, including CO, O2, CO/CO2 ratio, excess air, tightness/let by and even includes built-in differential manometer and type K temperature outlets for pressure and flue gas temperature measurements.
TPI 709R Combustion Efficiency Analyser Key Features
- Fully rechargeable batteries
- Built-in differential manometer with 0.001" H20 resolution
- High accuracy calculations of combustion efficiency
- Pump-driven sensor ensures fast response
- Ten selectable fuelds: natural gas, LPG, light oil, heavy oil, bitunimous coal, anthracite coal, coke, butane, wood and bagasse
- Built-in differential thermometer
- Memory - can store up to 50 readings
- Large-size, easy-to-read backlit display
- Filtering of nitric oxide, nitrogen dioxide and NOX to prevent cross sensitivity errors
- Measure CO, O2 and stack temperature
- PC communication
- Combustible gas detection
The following products are included in the standard kit version of the TPI 709R.
- TPI 709R Combustion Efficiency Analyser
- Rubber Boot
- Battery Charger
- Soft Carrying Case
- Flue Sampling Probe
- In-Line Filter Assembly on Flue Probe
- Temperature Probe
- Mini Pump Protection Filter Assembly and Spare Filters
- Exhaust Spigot (Removable)
- Instruction Manual
- TPI Infrared Printer
- 2 x Pipe Clamp Temperature Probes
